Kesla launches two new crane models: KESLA 2225 and KESLA 2228 designed specifically for loading long timber. These new models, officially launched at the Forexpo 2025 exhibition in France, mark a significant leap forward in performance, durability, and operator-focused design. Replacing the previous 2124L and 2024–2028 series, the KESLA 2225 (24 tnm) and 2228 (28 tnm) are engineered for demanding timber loading operations on semi-trailers and articulated trucks. With optimized hydraulics, robust boom structures, and advanced control systems, these cranes are built to meet the evolving needs of modern forestry.

Power meets precision

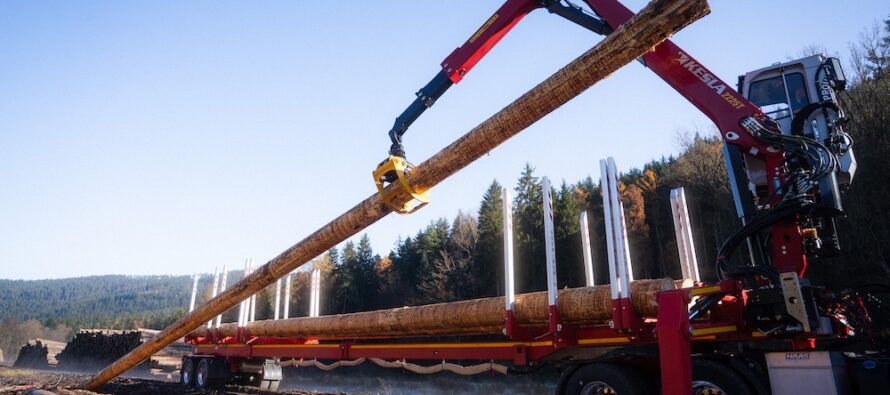

KESLA 2225 is a 24 tnm loader operating at 26 MPa, with an optional high-pressure mode (28 MPa) enabled via the proC i electric control system. This unique 5-minute heavy-lift mode is ideal for lifting semi-trailers, offering extra capacity with controlled speed.

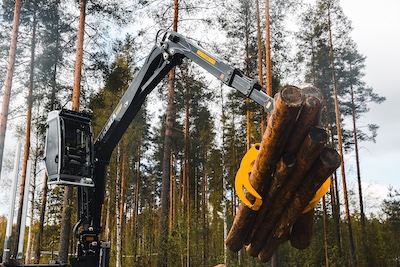

KESLA 2228 is a 28 tnm powerhouse operating at 26 MPa with larger cylinders for increased lifting performance. Standard equipment includes Parker K130 valves with a 2-circuit system, while Parker L90LS valves are available as an option.

Designed for demanding environments
These cranes are purpose-built for whole-tree harvesting sites and cut-to-length log loading, with outreach options of 8.4 m, 8.8 m, 9.8 m, and 10.2 m. Optional log heels on the main boom enhance handling of long timber and poles.
The FD3850 flapdown stabilizer legs provide exceptional stability on steep slopes and mountain roads, while the three stabilizer beam variants offer flexibility for different mounting configurations.

Operator comfort and hydraulic excellence
Hydraulics are internally routed. Large-diameter hydraulic lines ensure fast, efficient movements with reduced thermal load. The proC i system allows proportional joystick control and optional electric damping.
Boom system is constructed from Strenx 700 steel. The booms are both lightweight and durable. A dual-layer powder coating ensures long-lasting aesthetics and corrosion resistance.
Bolt-on gland designs simplify maintenance of the cylinder, while the extension system features a fast-tightening 1” 4×6 chain and easy hose replacement. The boom can be stowed over the truck cabin, achieving a compact transport height of just 785 mm.

Ergonomic high-seat control station
The redesigned high-seat offers superior comfort with adjustable suspension, a high backrest, armrests, seat heating, and safety features including an OPS switch and seat belt. Slide rails and an adjustable backrest ensure optimal ergonomics for long shifts.
